In shortOil, plumbing, bathrooms, heating, softeners and controls, in houses and in commercial buildings. The work that fills most weeks.

01 · Oil fired boilers

Install / Service
Oil fired boilers

Oil is still what most of rural Suffolk runs on, and it is still worth running well.

OFTEC registered servicing, installation, commissioning and breakdown response. A service is a strip and clean with a combustion test at the end, not a look and a sticker. If a boiler is at the end of its life we will tell you what it would cost to replace it and what it would cost to keep it going, and let you decide.

Annual serviceBreakdownReplacementTank and supplyCommissioning

02 · General plumbing

Repair / Install
General plumbing

A leaking joint and a full first fix are the same trade done at different sizes.

Taps, showers, cylinders, cold feeds, waste, outside taps, stopcocks that have not turned since the house was built. Extensions and renovations first fixed and second fixed to suit the build programme rather than holding it up.

RepairsFirst fixSecond fixCylindersLeaks and diagnostics

03 · Bathroom fitting

Install
Bathroom fitting

One trade in and out, rather than four you have to chase.

Strip out, first fix, walls and floors made good, tiling, second fix, silicone and the clean up. We will work to your design and suppliers, or spec it with you if you would rather not. It is the work our customers write to us about most, which is why it is on this site at all.

Strip outFirst fixTilingSecond fixMaking good

04 · Heating systems

Install
Heating systems

Getting the far end of the house warm is a design job, not a bigger boiler.

Radiators and towel rails sized to the room and to the flow temperature, pipework renewed where it is undersized, then the whole system balanced so every emitter does its share. Designer radiators and heated towel rails specified and fitted where you want them rather than where the old one was.

RadiatorsTowel railsBalancingPipeworkControls

05 · Powerflushing

Service
Powerflushing

Slow to warm up, cold at the bottom, cold spots along the run. That is sludge, not a boiler that needs replacing.

Rust, magnetite and boiler debris build up inside the pipework of every wet heating system. Once there is enough of it, circulation drops, the far end of the house never gets warm and the boiler burns more fuel to deliver less heat into the rooms.

A powerflush takes it out. High flow at low pressure, run circuit by circuit with a clearing chemical, so the debris lifts without putting the pipework under a pressure it was never built for. Magnetic filtration sits on the return for the whole job and catches the magnetite as it comes. Inhibitor to the correct dose at the end, and a note of what went in.

System cleanMagnetic filtrationCircuit by circuitInhibitor dosingThermal survey

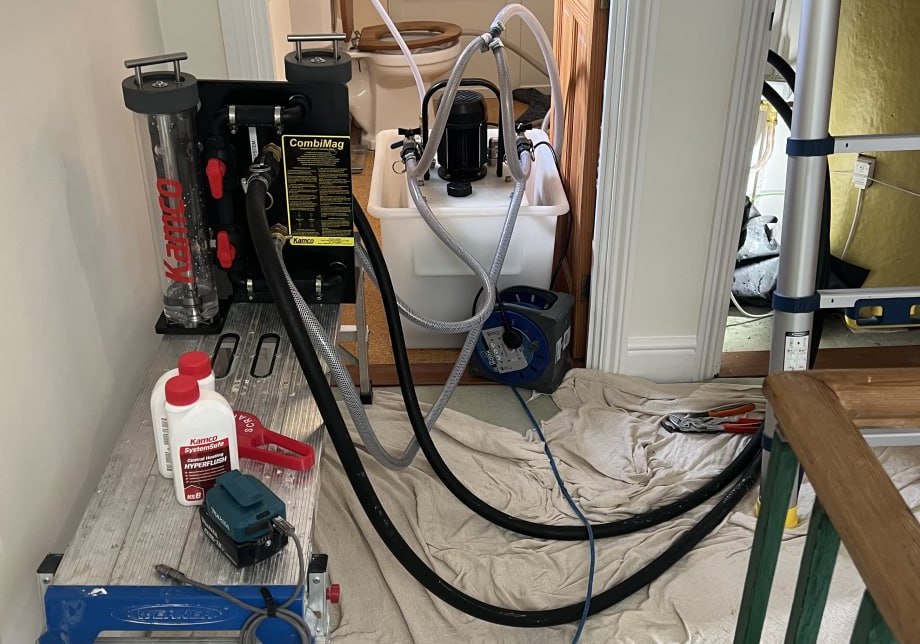

A Kamco flushing machine and magnetic filter set up on a landing with dust sheets down
On the day

Sheets down,
machine on,
circuit by circuit.

The rig stands where it can reach the system rather than where it is convenient, and the boards and dust sheets go down before anything is connected. Each circuit is flushed in turn, and the magnetic filter is stripped and wiped between them.

That last part is the one that matters. What comes off the magnet on the third pass tells you whether the job is finished, and it is the only honest way to know.

05 · On the camera

The radiator tells
you when it
is clear.

The flush is surveyed with a thermal camera as it runs, at the same distance and the same emissivity setting each time, so what changed is a reading rather than an opinion. The three frames below are from one house on one morning, timestamped on the camera.

It is also how we know when to stop. A panel that is still cold at the bottom has not finished, whatever the water coming back looks like.

Copies of the survey frames go out with the job sheet, along with the inhibitor dose and the product that went in, so the next engineer to open the system has something to work from.

Book a powerflush

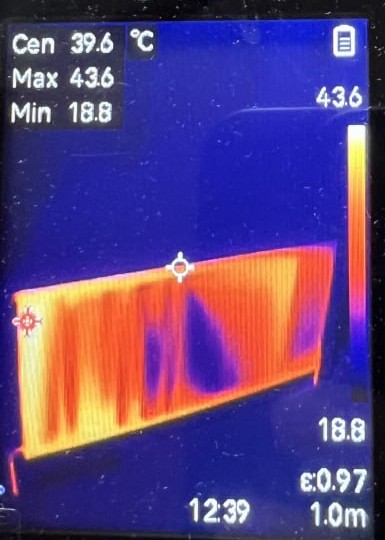

Thermal camera frame at 12:39 showing a radiator with cold vertical streaks, centre 39.6C
12:39 · Landing radiator

Cold streaks down the panel

The top rail is hot and most of the surface is not. Those dark bands are where the sludge has settled and the water has stopped moving.

39.6°CCentre
43.6°CMax
18.8°CMin

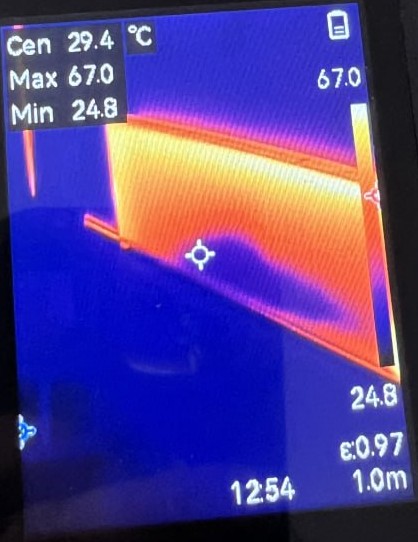

Thermal camera frame at 12:54 showing heat only along the top of a radiator, centre 29.4C
12:54 · Sitting room, mid flush

Hot at the flow, nothing under it

Water is arriving at 67 degrees and going straight along the top rail and out again. Everything below the first few inches of panel is still blocked.

29.4°CCentre
67.0°CMax
24.8°CMin

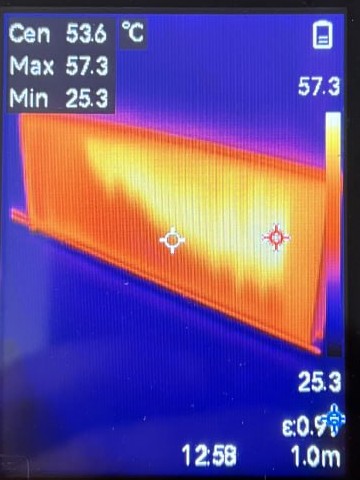

Thermal camera frame at 12:58 showing the same radiator hot across the whole panel, centre 53.6C
12:58 · The same radiator

Hot corner to corner

Four minutes later the panel is carrying heat across its whole face. The centre reading has gone from 29.4 to 53.6 with the boiler doing no more work than it was.

53.6°CCentre
57.3°CMax
25.3°CMin

What a flush gets you

05 · continued
01Warm through, fasterFull circulation back, so the whole house comes up together instead of the far end arriving an hour later or not at all. Cold spots on a radiator are almost never a radiator problem.Comfort
02Less fuel burntA clean system gives up its heat at a lower flow temperature, so the boiler cycles less and runs shorter. On a heat pump the same thing decides whether it is cheap to run or not.Running cost
03A boiler that lastsMagnetite is what takes out circulating pumps, diverter valves and heat exchangers. Getting it out costs less than any one of those, and a great deal less than all three.Boiler life
04QuieterKettling, banging pipes and the pump whine that starts every October come from debris and the air that collects around it. They go out with the sludge.Noise

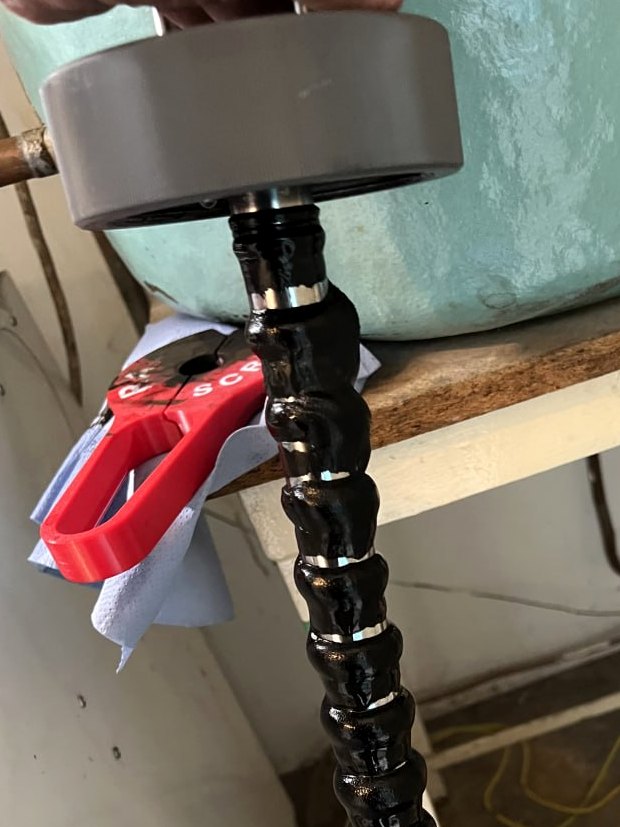

A filter magnet withdrawn from the housing, coated in black magnetite
What comes out

Straight off the magnet

Magnetite. Iron oxide that has come off the inside of the radiators and the pipework, and that was going round through the pump and the heat exchanger until this morning. Every wet system makes it. The question is only whether anything is taking it out.

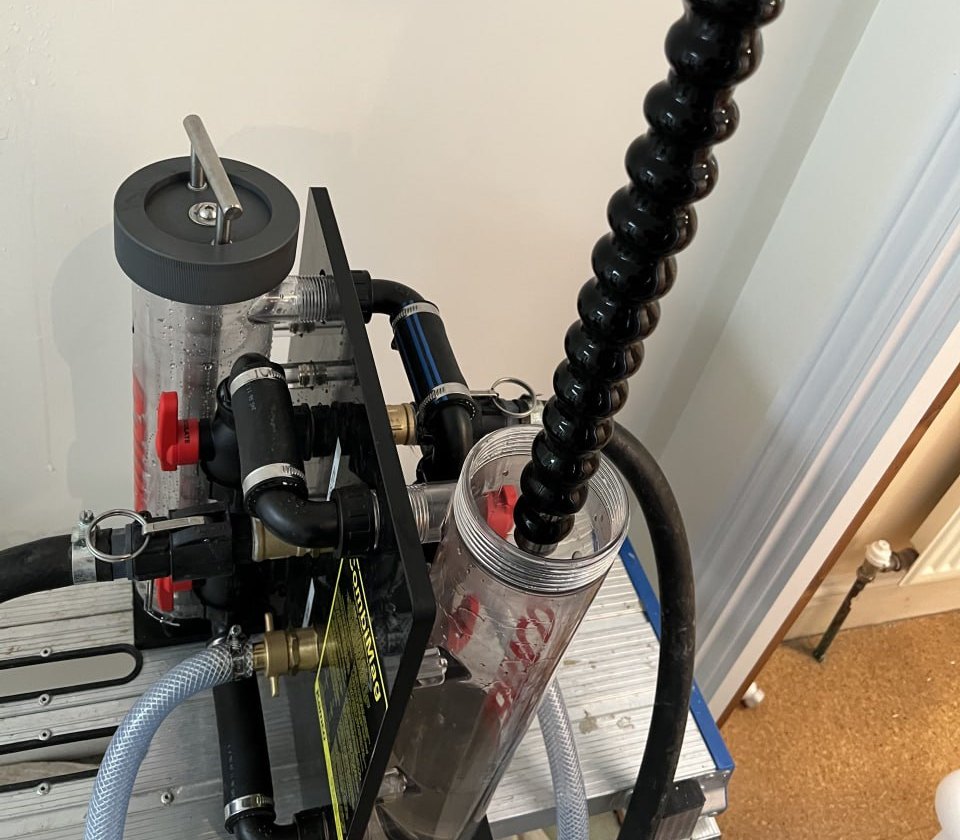

The clear magnetic filter chamber on the flushing rig with the magnet being withdrawn
Filtration

Caught on the return

The magnetic filter runs on the return for the whole flush, so what lifts out of one circuit is taken out of the system rather than driven into the next one. It gets stripped and wiped between circuits, not at the end.

06 · Water softeners

Install
Water softeners

Suffolk water is hard enough to be a maintenance problem in its own right.

Scale takes the efficiency out of a heat exchanger, shortens the life of every appliance in the house, and quietly narrows the pipework behind the wall. A softener plumbed in properly, with the hard tap kept for drinking, pays for itself over the life of a boiler.

Supply and installHard drinking tapSalt and servicingScale reduction

07 · Controls and thermostats

Install
Controls and thermostats

A good control strategy is the cheapest efficiency upgrade there is.

Programmable and smart thermostats, zone valves, weather compensation and cylinder controls, set up around how the building is actually used. Most systems we are called to are running on the settings they left the factory with.

Smart thermostatsZoningWeather compensationSet up and handover
